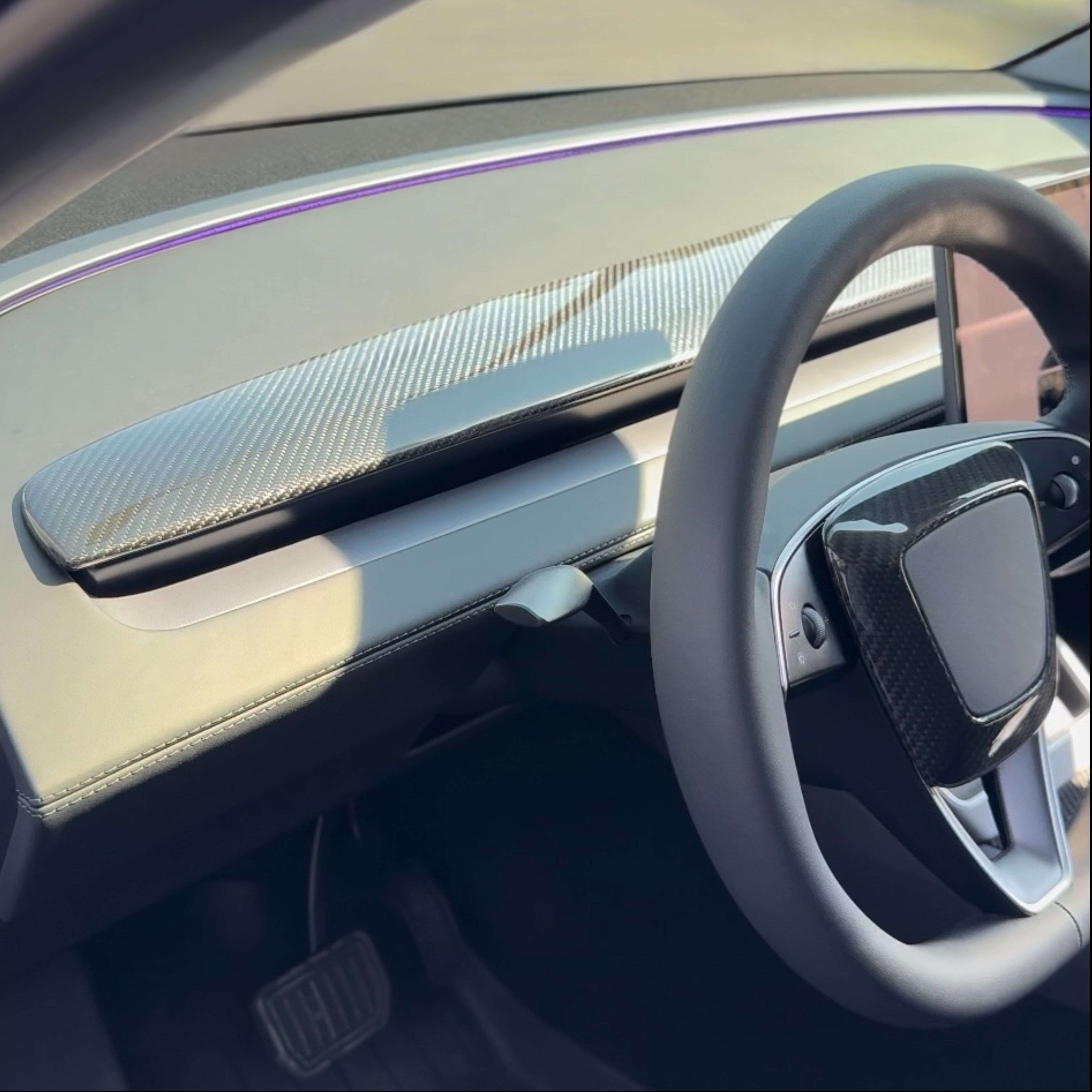

Full‑width carbon dashboard. Refreshed.

Autoclave cured dry carbon fiber sweeps the dash, erases factory plastic, and tightens the cockpit aesthetic in one, single piece replacement Dashboard. UV shielded resin freezes the weave forever. No fading, no cracking, just permanent attitude every time you slip behind the wheel.

Elite material: 3K 240gsm Carbon Fiber + Pre-impregnation technology

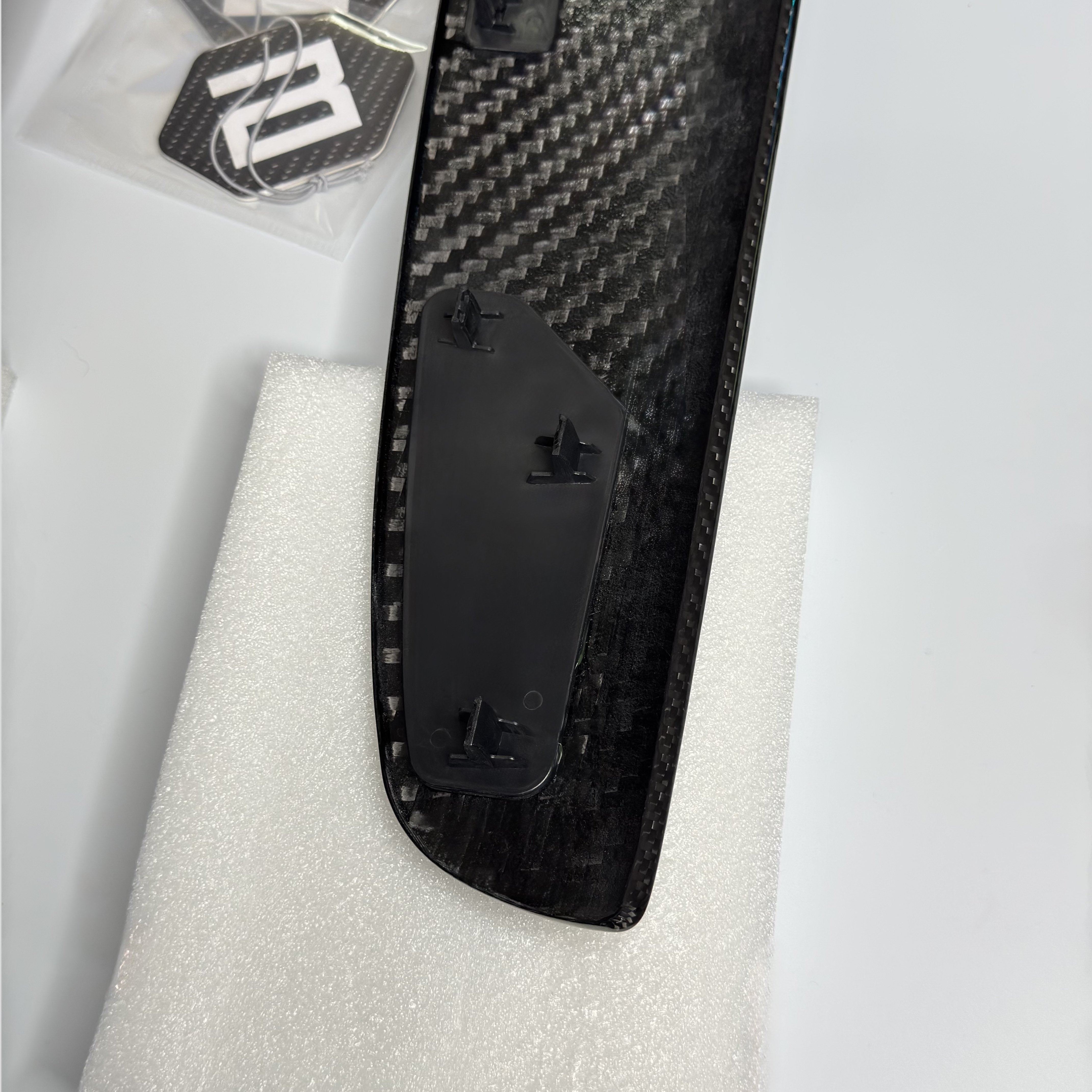

Precision molded clip geometry for factory tight, OEM-grade fitment
Auto trim removal tool included ~ 5-10 min install
High‑temp UV clear coating infused into resin: No yellowing or chalking

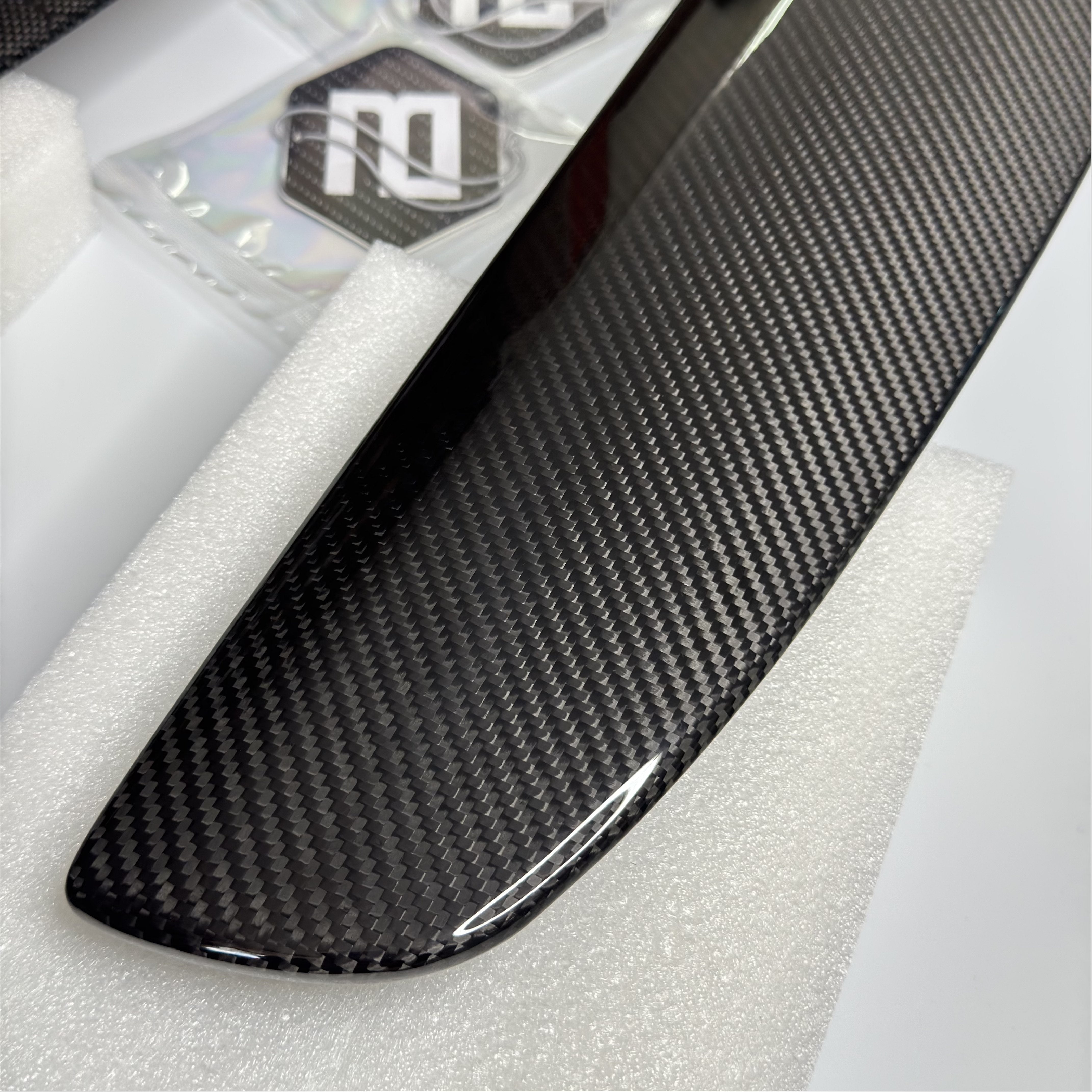

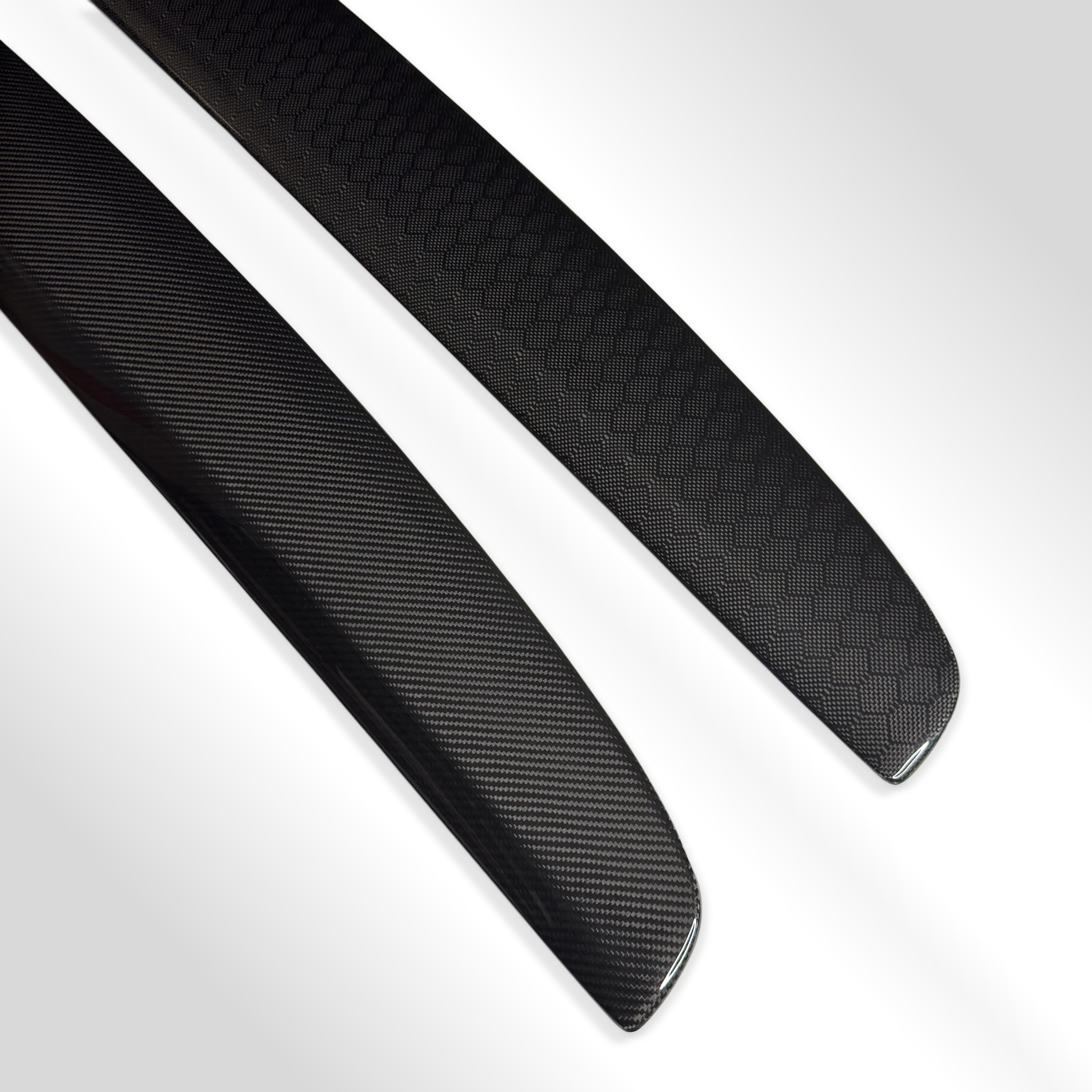

Finish options: Gloss  ·  Honeycomb

Bundle with the matching Center Console for a seamless full‑cockpit flow

Fitment

Model 3 Refresh (2024+)
Internal Codename: Highland

Model Y Refresh (2025+)
Internal Codename: Juniper

Install

Tools » Included 1x trim prying tool.
Optional: microfiber towel, 70 % IPA, nitrile gloves.

Prep » Reposition the steering wheel to its lowest allowed position via the center touchscreen, to allow maximum available install room.

Remove OEM Dashboard »
Start on either outer corner first:
1. Insert your Pry tool at the edge of your chosen corner until the first clip releases.
Note: This first clip will require a little more force than what you may be comfortable with.
2. Repeat along the bottom edges (towards the opposite corner) until all lower clips pop.
3. Considering your proximity to the windshield, lift dash straight off.
Do not pull toward the glass due to low risk of scratching

Inspect » Ensure all silver OEM clips stayed on the dashboard housing. You will most likely need to reposition a few silver clips so that they sit flush to allow your new Bullet Carbon™ Dashboard clips to sit flush. Remove any debris and/or broken clips.

Install your Bullet Carbon™ Dashboard »
1. Before applying any pressure align all tabs first; seat them into the factory slots and ensure alignment.
2. Press downward until one section of the clips re-engage.
3. Starting at the attached edge, work outward toward the opposite edge, pressing until each clip locks.
4. Check and feel around the perimeter; the seam should be flush and even.

Check » Apply a very soft force upwards, as if you were trying to remove it again; dash must stay seated and not pop out.

If Dash detaches, one or more of the OEM clips is still not snapped in – press again until it locks in. If clips still do not hold after attempting to push them in, one or more of the silver OEM clips on the dashboard housing was not properly repositioned. Detach, reposition, re-attempt.
